Simplifying Detour Planning with Big Data

Big Data | Transportation

In this post, we explore using Big Data for detour planning using StreetLight InSight®, our easy-to-use web application for transforming Big Data from mobile devices into transportation Metrics. We analyzed the Race Street Bridge in Lehigh Valley, Pennsylvania because that region’s planning commission intends to spend nearly $183 million USD upgrading 30+ bridges in the next four years – including this one. Because of the FAST Act, communities like Lehigh Valley can now more easily tap federal funds for much-needed repairs.
While making improvements to core infrastructure like bridges is critical, construction can disrupt travel patterns, creating bottlenecks and unintended safety issues. That’s where data-driven detour planning can make a difference by:

  • Estimating the impact a closure could have on other bridges;
  • Targeting interventions to mitigate negative impacts.

With the right real-world data, communities can deploy targeted transportation demand management incentives in key areas and optimize detour design. Expenditures that are based on actual, measured behaviors are more likely to deliver good ROI in terms of both congestion avoided and dollars spent.

Travel Patterns on the Race Street Bridge

We began our high-level detour planning analysis with three key questions:

  • Where do Race Street Bridge users begin and end their trips?
  • What bridges would Race Street users most likely prefer as alternatives?
  • Can other bridges accommodate traffic if the Race Street Bridge is closed?

To answer these questions, we created an Origin-Destination with Middle Filter Project using StreetLight InSight, which is similar to a Select Link Analysis. For our origins and destinations, we identified 12 “Zones of Influence” in the region (See Figure 1). For our links, or “Middle Filters” in our terminology, we used 12 bridges: the Race Street Bridge and nearby bridges that could serve as alternate routes (See Figure 2).

The six external Zones are “pass through” Zones, which means that they capture external trips - those that do not begin and/or end in that Zone - but that use one of the bridges we identified. We used the Race Street Bridge and the bridges that could serve as alternates if Race Street is closed as the markers for dividing the region into these “Zones of Influence.”


Zones_Blue_With Labels_with Race Street Bridge.jpg

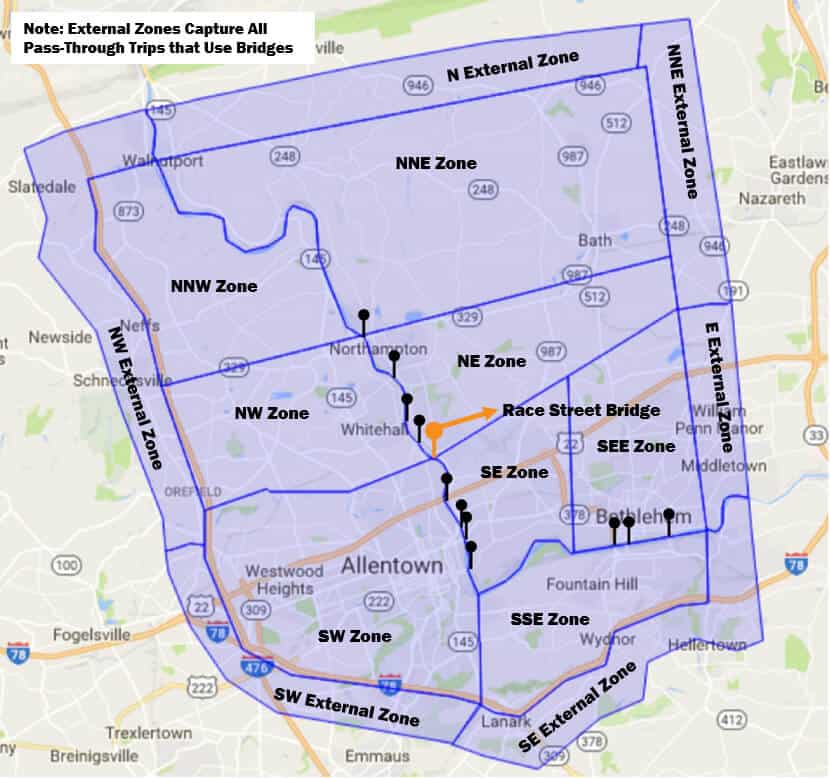

Figure 1: This map shows the study area divided into analysis Zones. Bridges are indicated with pins. External trips (those that do not originate and/or do not have destinations in the internal zones) that use the bridges in our study area are captured by the external zones.


Bridges_Blue_With Labels.jpg

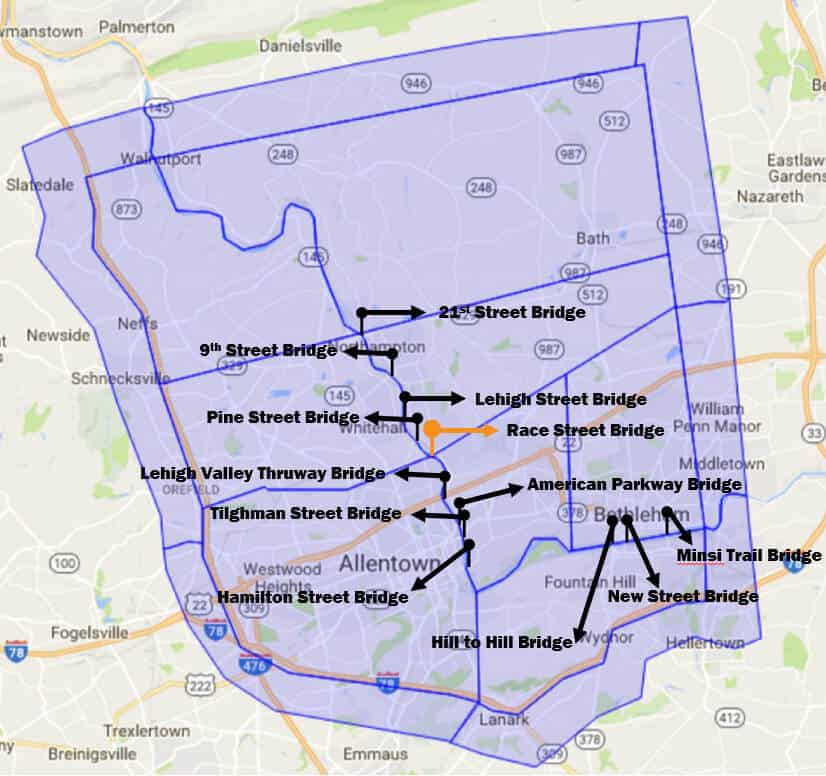

Figure 2: This map labels all of the bridges that served as our links, or “Middle Filters.”

This Origin-Destination with Middle Filter analysis was completed in about 45 minutes in StreetLight InSight, and was based on 12 months of data. The analysis generated Metrics that describe the relative volume of trips between each of the 24 pairs of Origin and Destination Zones that use the 12 bridges at different times of day and days of the week.

As visualized below in Figures 3 and 4, our analysis indicates that the greatest volume of trips using the Race Street Bridge traveled between these OD pairs:

  • From the Southwest Zone to the Northeast Zone;
  • From the Northeast Zone to the Southwest Zone.


NE Origin Zone Heat Map_With Labels.jpg

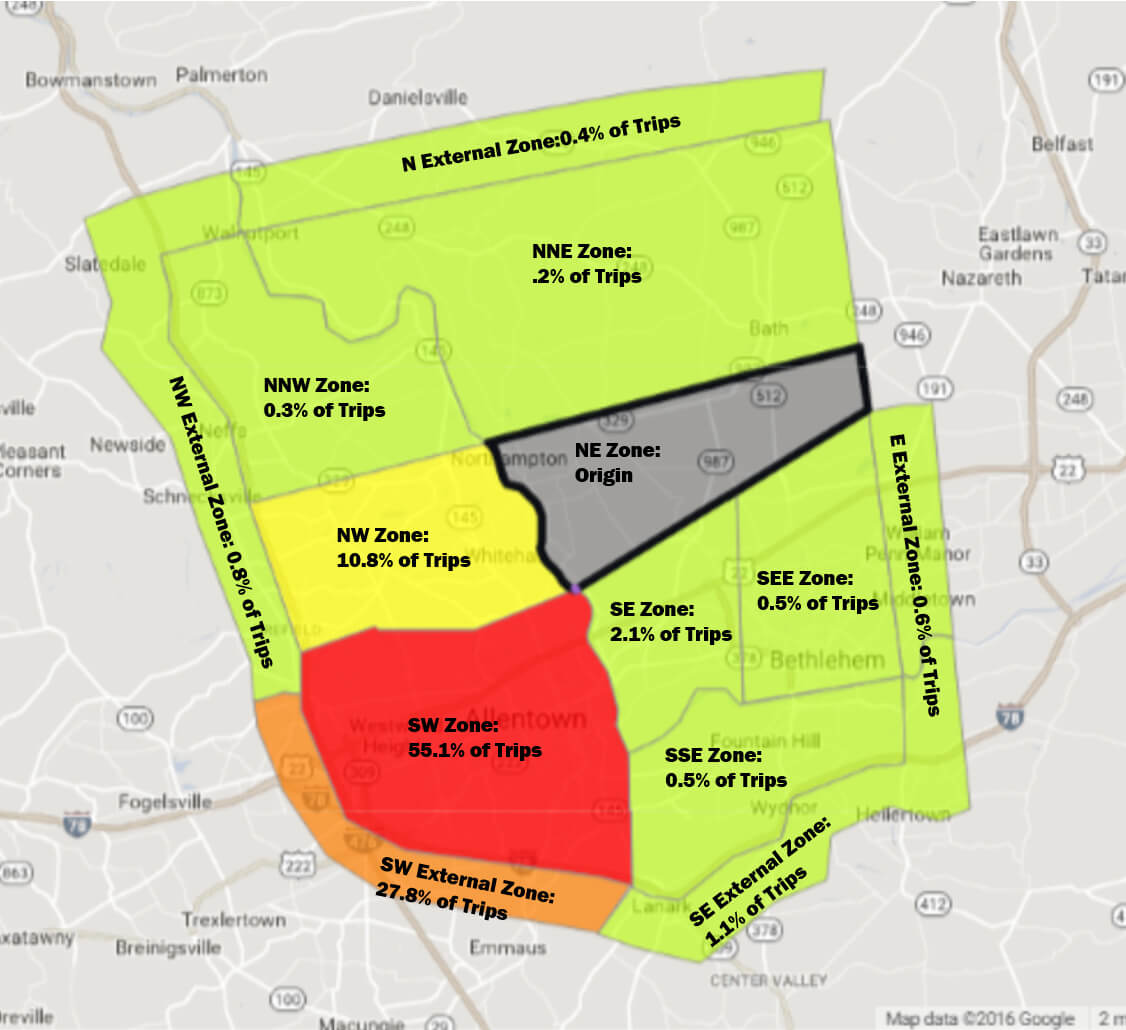

Figure 3: This heat map indicates the relative of volume of trips with origins in the NE Zone that used the Race Street Bridge. The external Zones capture all trips that pass through to other destinations.


SW Origin Zone Heat Map_With Labels.jpg

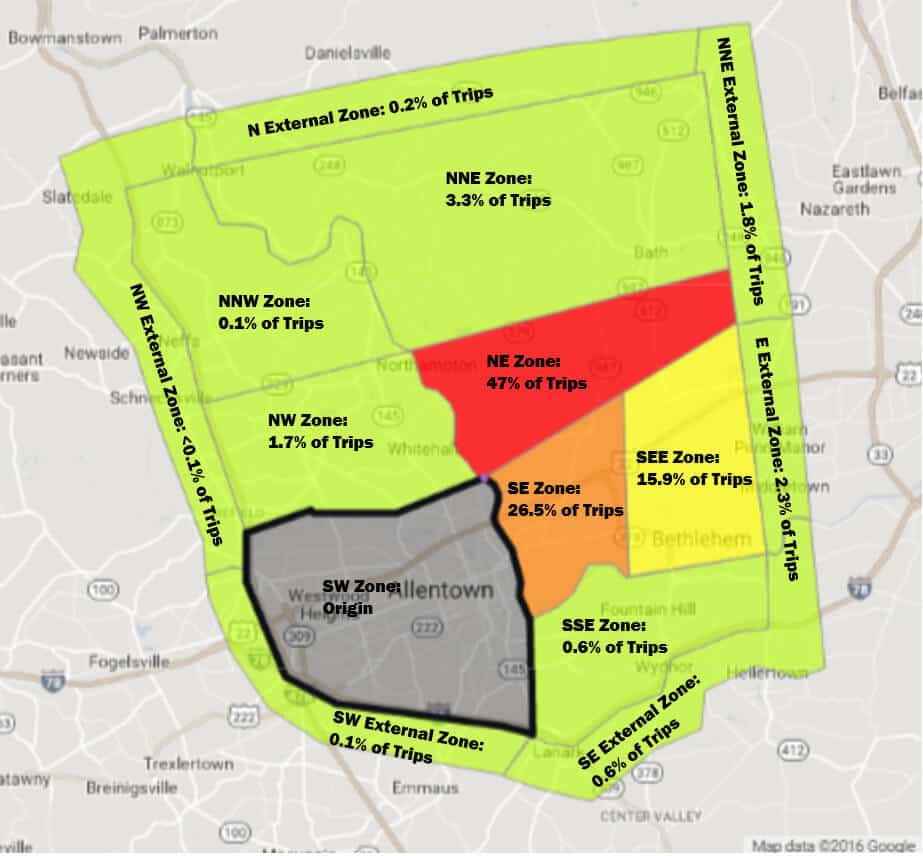

Figure 4: This heat map indicates that relative of volume of trips with origins in the SW Zone that used the Race Street Bridge. The external Zones capture all trips that pass through to other destinations.

Identifying the top OD pairs that use the Race Street Bridge can guide planners to concentrate on these two areas for:

  • Construction and detour communications;
  • Congestion mitigation programs, such as peak shifting and transit and work-from-home incentives.

Understanding Flows on Every Bridge

Our next step is to evaluate the flow of traffic across all the bridges in the area, and to determine bridge usage for the top two OD combinations for the Race Street Bridge. This will help us understand which bridges can most feasibly accommodate the trips that would typically use the Race Street Bridge.

To do this, we downloaded a .csv file of the StreetLight InSight Metrics visualized in the heat maps above. Using StreetLight InSight Metrics for relative trip volume, we determined the percentage of personal traffic that flows over each bridge daily and the share of traffic using each bridge that travels between the Race Street Bridge's top OD pairs (See Figure 5).

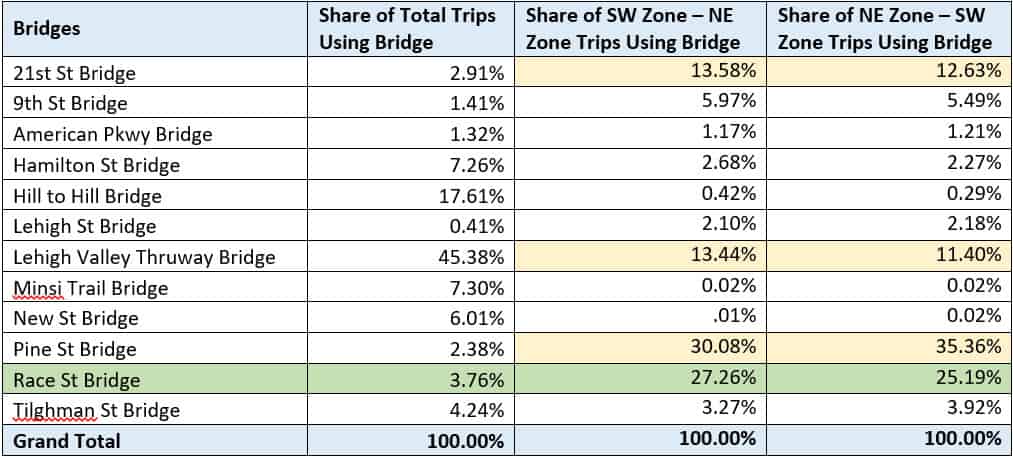

 Figure 5: This chart shows the share of all personal trips taken across each bridge and compares it to the share of traffic between the most popular OD pairs for the Race Street Bridge. As shown above, the Race Street Bridge carries only 3.76% total bridge traffic on average, but it carries over ¼ of the trips between the SW-NE and NE-SW OD pairs. As one might expect, the values are symmetrical.

Further detour analysis and design can now focus on the bridges that are most popular for these OD combinations: the Pine Street Bridge and Lehigh Valley Thruway Bridge. We would then further refine our selection of bridges for detours by considering other factors alongside our data, like current bridge capacity and number of lanes, existing or predicted safety issues, and the potential impact on the overall road network of using specific detour routes. In this particular case, it may be more prudent to keep the Race Street Bridge open during construction, if at all possible, given that it carries over 25% of traffic between the SW and NE Zones.

In addition, while rerouting to the Pine St. Bridge may be most convenient, it is probably a much lower capacity bridge compared to the Lehigh Valley Thruway Bridge, considering its share of total trips is just 2.38%. Rerouting to the Lehigh Valley Thruway Bridge is at least reasonable, given that ~12% of trips between the key OD pairs currently take that bridge. However, given the high level of use by all traffic over that bridge - 45% - further capacity analysis would be necessary.

Most interesting, the 21st Street Bridge, which is further from Race Street, carries as many NE to SW trips as the LeHigh Valley Thruway Bridge. That makes it an intriguing if counterintuitive option to explore. Finally, focusing transportation demand management efforts intended to mitigate the impact of the detour should focus on key origin and destination points (employers, hospitals, etc.) in the NE and SW Zones.

For our study, we focused on the average volumes across all day parts and day types. However, it is also possible to use StreetLight InSight to zero in on behavior at specific times for peak flow estimations or to “zoom in” on the key Zones and break them into smaller pieces. Engineers can utilize this data as they calculate maximum peak hour capacity and Service Flow Rate, ultimately developing a more complete understanding of construction impacts that reflect real-world conditions.


As shown in this analysis, Big Data can be used to understand the “big picture” when it comes to detour planning. You can quickly identify the top origin-destination pairs that use specific routes, and you can readily determine the relative volume of traffic that flows across alternate routes.
